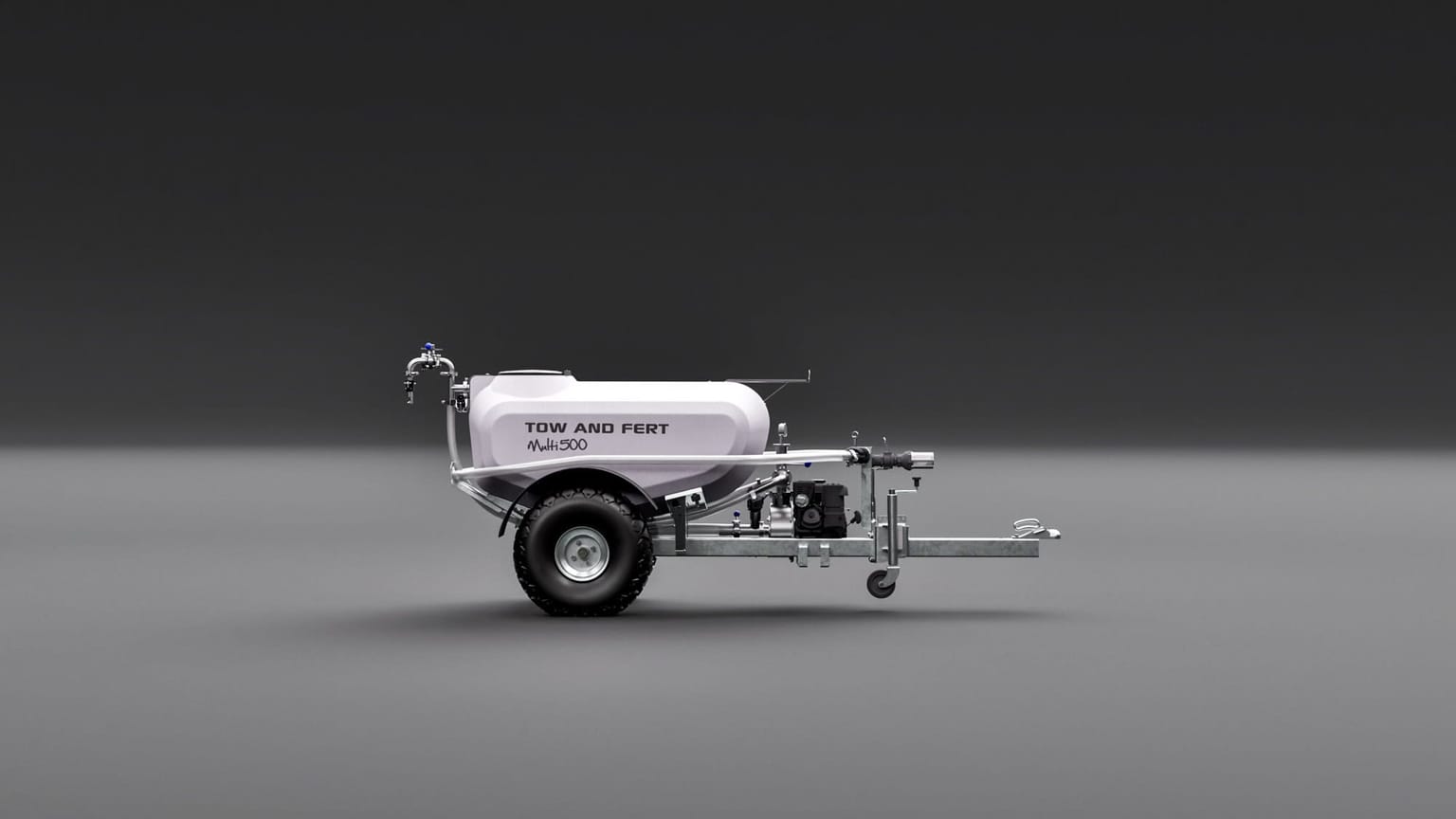

MULTI 500

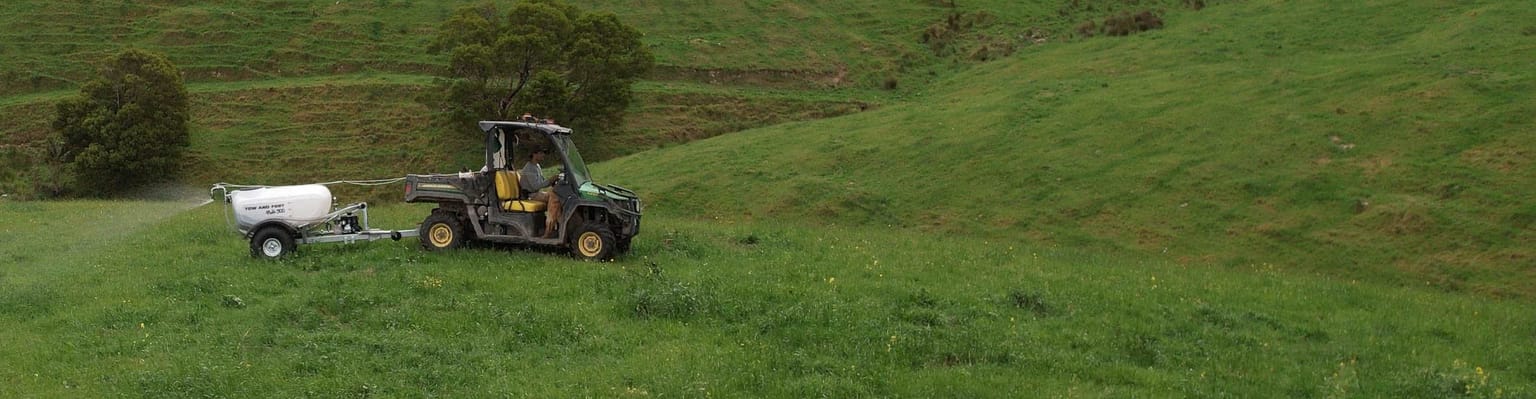

The Tow and Fert Multi 500 is able to be towed behind any ATV or side-by-side.

The Tow and Fert Multi 500 is the perfect addition to any farm. Easy to use you can follow the cows as they head to the milk shed, applying fertiliser, animal helath products and so much more.

Easy and Quick to Use.

The perfect solution for all farmers, smaller farms, and those needing a second machine. The Tow and Fert Multi 500.

The Tow and Fert Multi 500 is a completely stand alone machine. It has been developed to be towed behind a large ATV or side-by-side, to be easy to use and for farmers wanting to get started on the Tow and Fert Fertiliser System.

Ideal for smaller farms, the Tow and Fert Multi 500 offers farmers a solution that enables them to spary their fertiliser after the cows have left the paddock for milking. Spraying Magnesium Oxide during spring is another way to maximise your Tow and Fert Multi 500 whilst growing more grass with foliar fertiliser and saving money on the cost of inputs by using less fertiliser.

With a low centre of gravity, the Multi 500 is a very versatile machine on all types of farms.

With a 500 litre capacity this machine can easily dissolve up to 200 kgs of urea in cold water, or hold up to 350kgs of dry fine particle product in suspension. The Multi 500 features our patented re-circulation boom design that delivers up to a 10 metre spread through one nozzel. The re-circulation boom means fertiliser product cannot settle out in any dead areas found on typical boom sprayers.

Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last.
All fittings are removable without a toolbox and can be changed in the field.

Depending on application rate, the Multi 500 has the capacity to cover approx. 3-4 hectares in 25 mins.

tank volume 500 litres (132 gallons)
spray width Up to 10 metres (32 feet)
application rate Variable from 50 – 500 litres/hectare
attachment style Trailed
attachment vehicle ATV or side-by-side
agitation powered by On board Petrol Engine
area per load approx. 3-4 hectares (7 – 10 acres)
pump model Metalform Stainless 2” Centrifugal Trash Pump
pump performance 750 litres per minute at 0 metres lift. Max lift = 3 metres
pump powered by On board Petrol Engine
dry weight 120kg
full weight up to 800kg
size 2.30m (L) x 1.80m (W) x 1.70m (H)
tow hitch 1 7/8” or 50mm Coupling
Optional Extras External Suction Kit.
Electronic Spray Operation.
